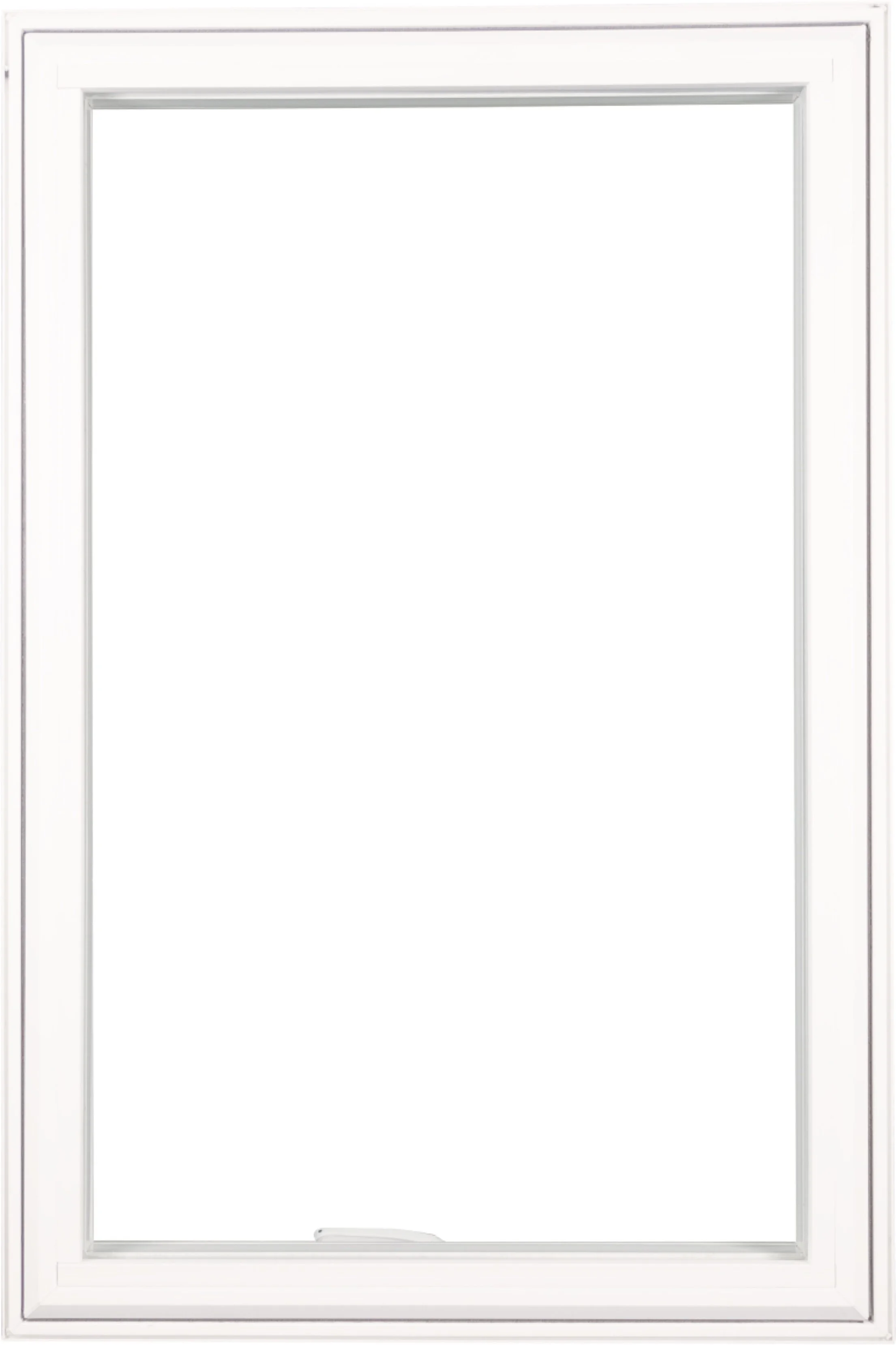

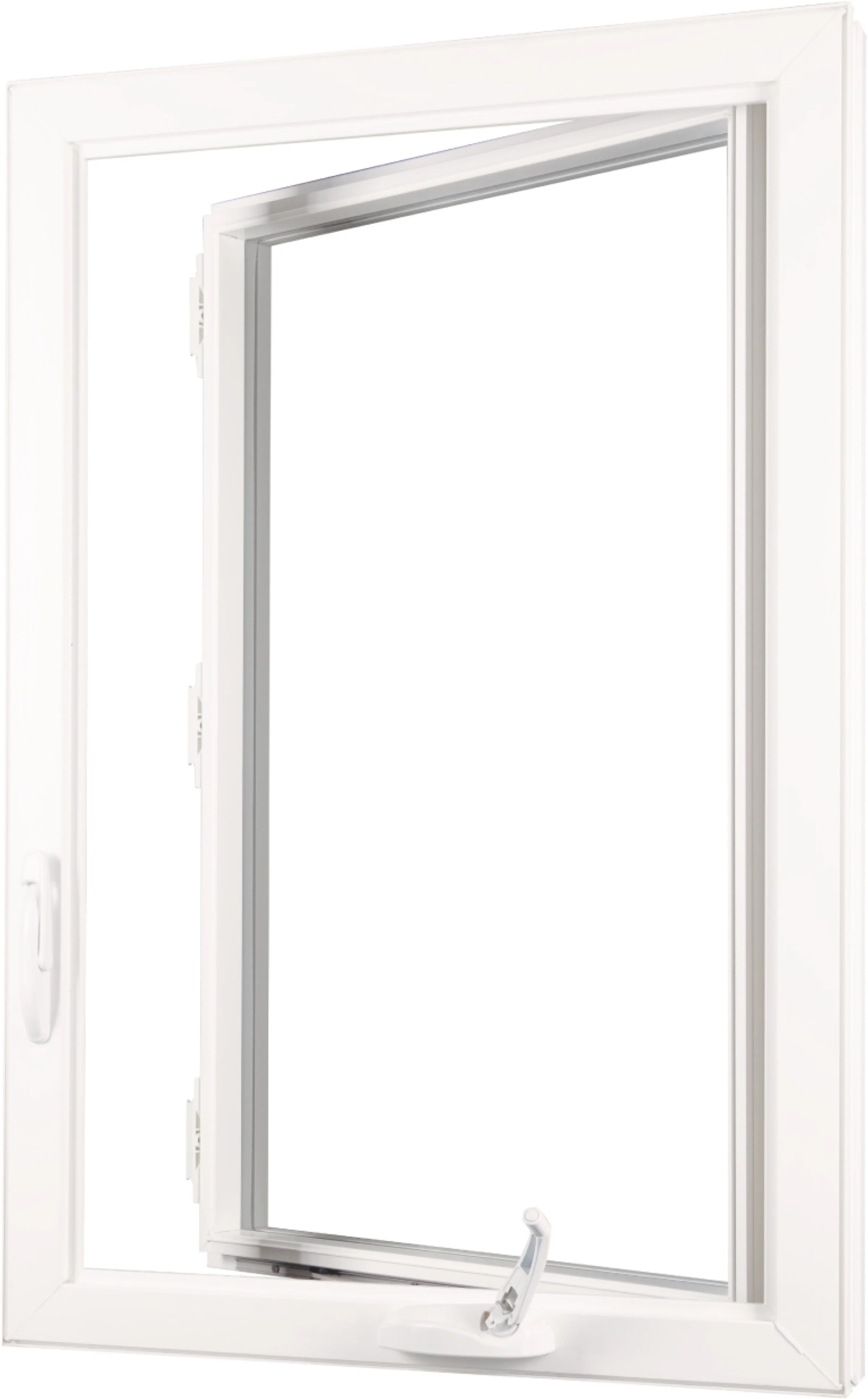

Casement EOS+

EOS+ windows use world-class engineering and advanced materials to create a new standard for performance, economy and efficiency in both replacement and new construction platforms. These windows are designed to meet the strict criteria of ENERGY STAR 6.0 and beyond, while offering a variety of color, finish and hardware options.

All EOS+ windows feature the exclusive SunShieldR PVC technology, exceptionally low air infiltration rates, exceptionally high structural ratings and a U-value of .25 with double-glazed Low-E glass and Argon gas in a 3/4" IG.

Standard Features:

• White fully welded sashes and frame, frame is 3-1/4” deep

• 3/4" double glazed with Low-E glass and Argon

• Multi-chambered extrusions for superior strength

• Aluminum full screen with fiberglass mesh

• Fully sealed operators to provide water resistance

• Folding crank handle

New Construction Features:

• Integral nailing fin

• Optional 3/4" recessed j-channel

• Optional 3-1/4" flat casing with or without sill (includes nail fin and j-channel)

• Optional 2" brickmould with or without sill (includes nail fin and j-channel)

• Optional PFJ or clear pine extension jambs, PFJ extension jambs feature an upgraded primed finish

• (Standard 4-9/16 and 6-9/16, custom jamb dimensions available)

Additional Options:

• Grids between glass

• Simulated divided lites (SDL) – (1” maximum IG)

• 1-1/4" triple glazed double Low-E and Argon

• Aluminum screen wire

• Foam wrap on jambs (replacement frame only)

• Structural mullion

• Egress hardware

• Standard exterior laminate colors: Black and Bronze

• Standard paint colors: Black, Bronze, Brown, Green, Red, and Beige

*For custom paint colors a color sample must be supplied

Sizes:

• Operating casement widths: 15-3/4” through 36”

• Operating casement heights: 27” through 68”

• Fixed casement widths: 12” through 78”

• Fixed casement heights: 12” through 78”

Mercury Excelum, Inc., is proud to offer our customers ENERGY STAR qualified products.
