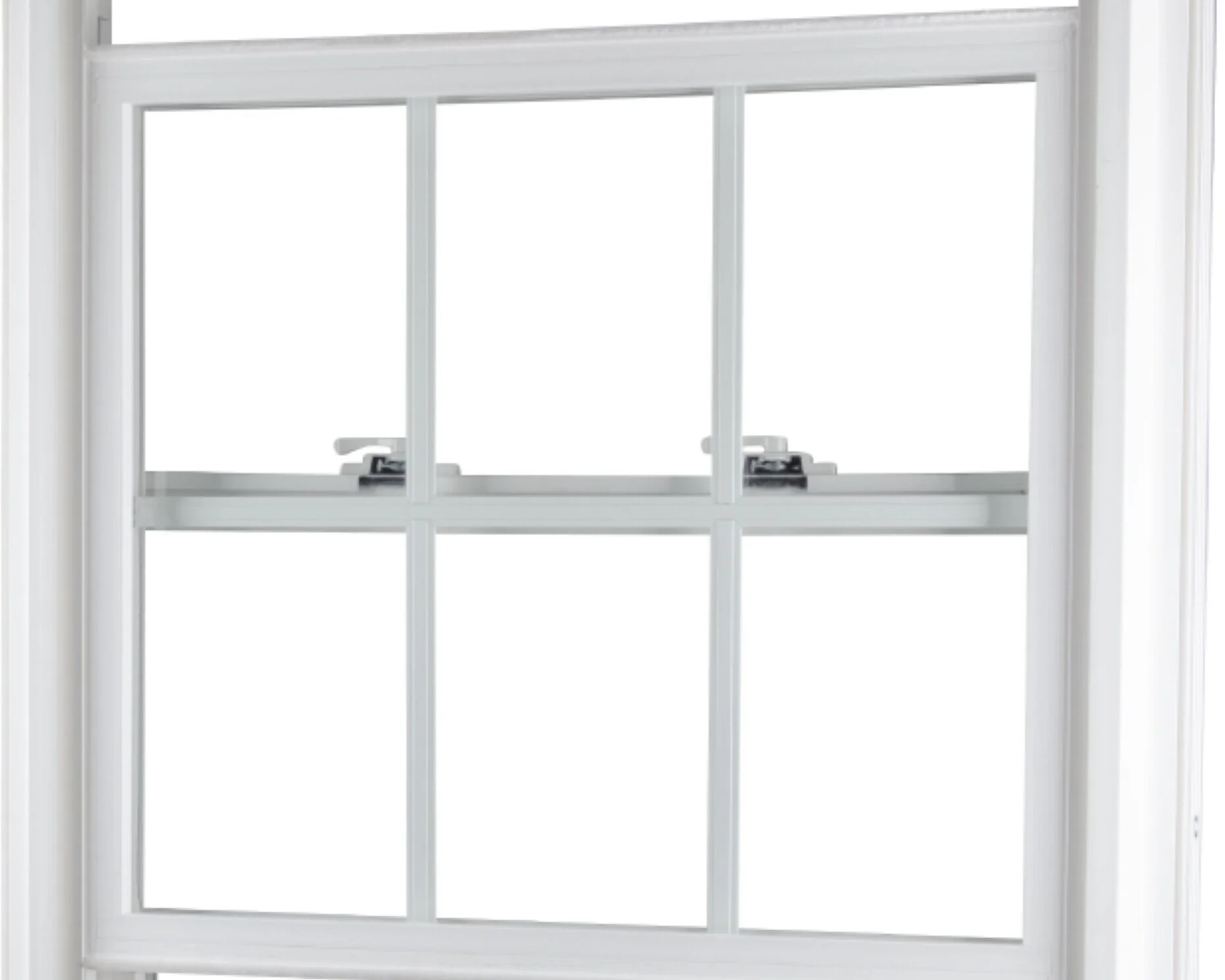

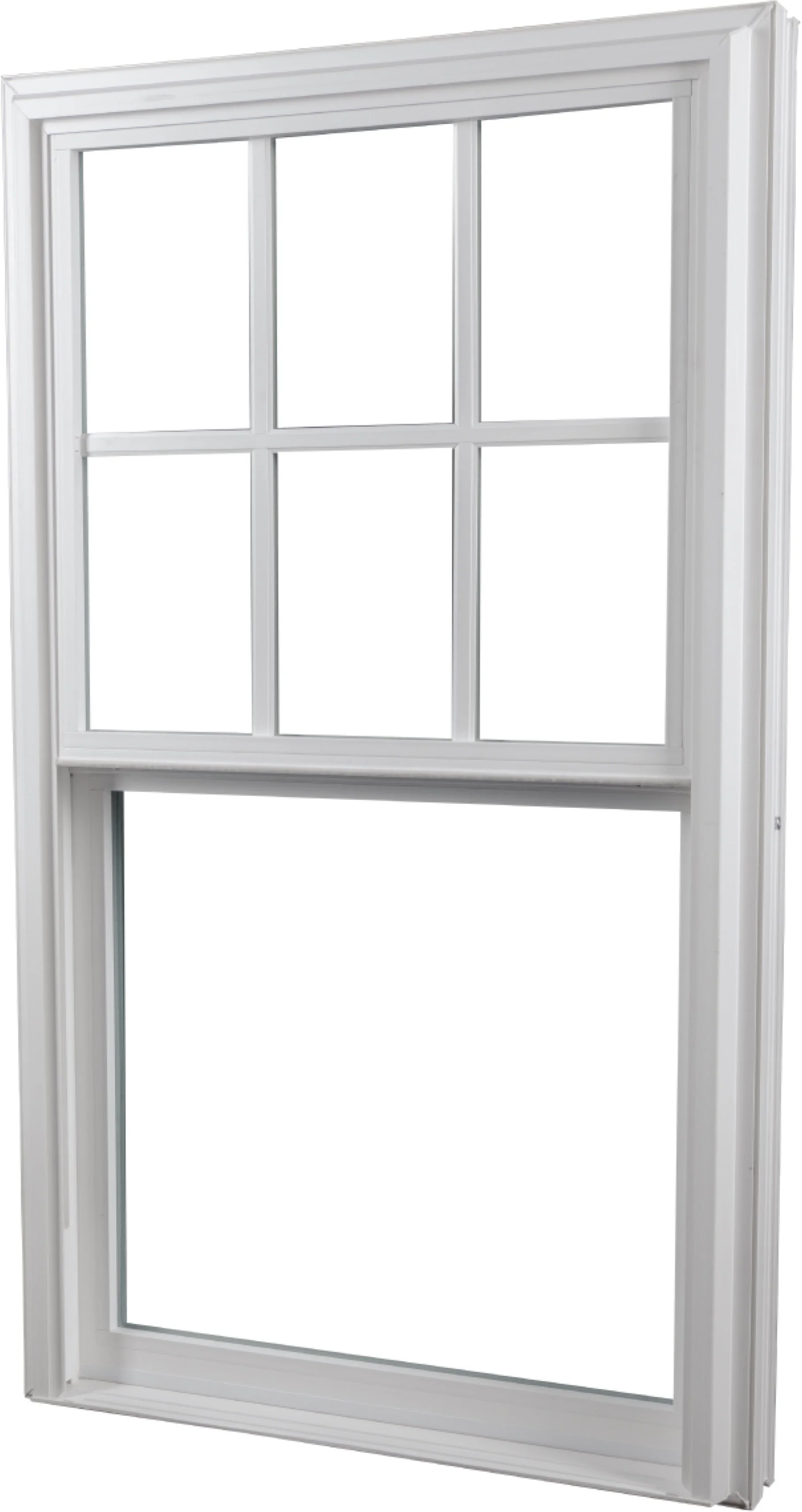

Double Hung EOS+

EOS+ windows use world-class engineering and advanced materials to create a new standard for performance, economy and efficiency in both replacement and new construction platforms. These windows are designed to meet the strict criteria of ENERGY STAR 6.0 and beyond, while offering a variety of color, finish and hardware options.

All EOS+ windows feature the exclusive SunShieldR PVC technology, exceptionally low air infiltration rates, exceptionally high structural ratings and a U-value of .27 with double-glazed Low-E glass and Argon gas in a 3/4" IG.

Standard Features:

  • White fully welded sashes and frame, frame is 3-1/4” deep

  • 3/4" double glazed with Low-E glass and Argon

  • Multi-chambered extrusions for superior strength

  • Block-and-tackle balances with color-matched balance covers

  • Extruded aluminum locking half screen with fiberglass mesh

  • Contoured sash and lift rail

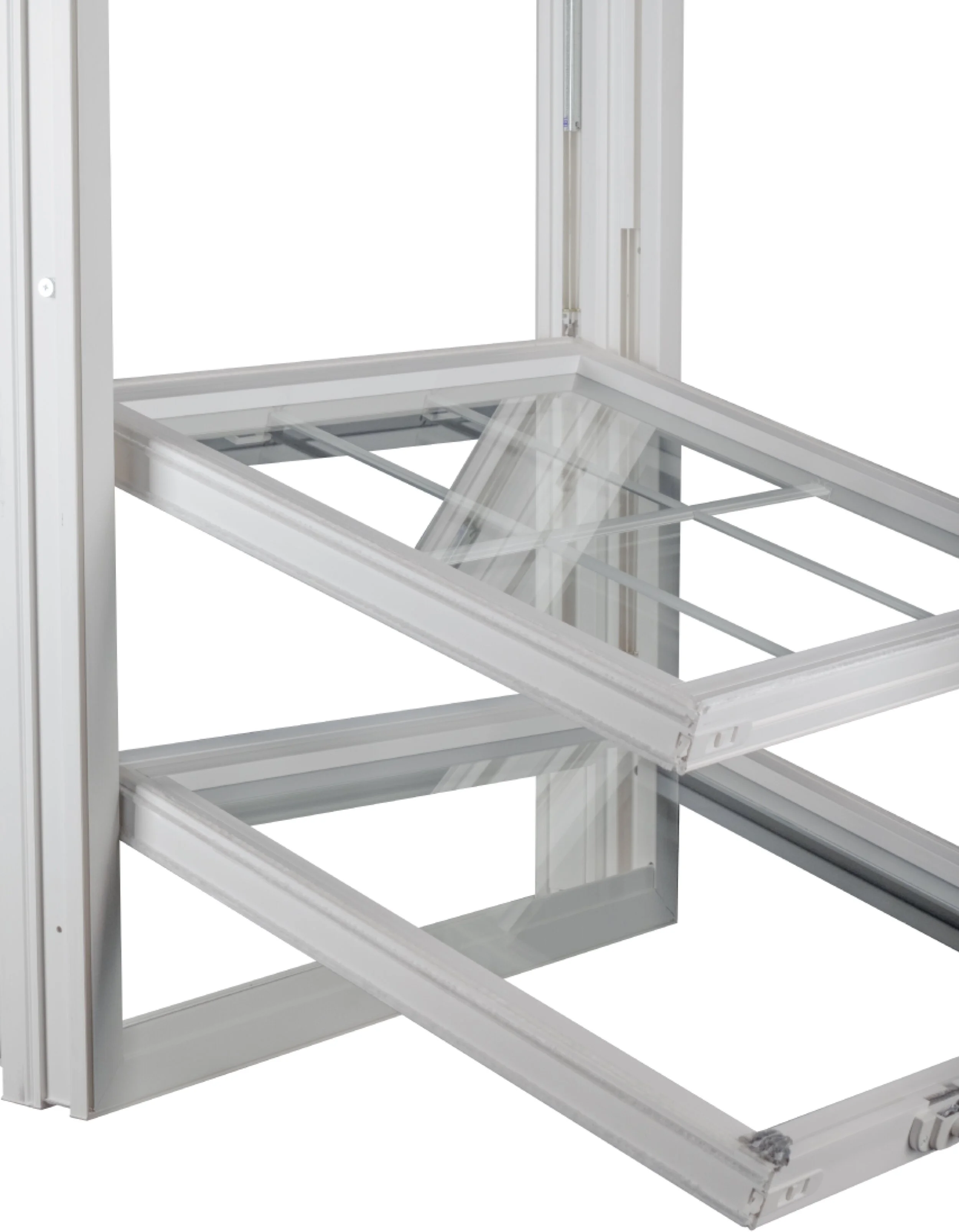

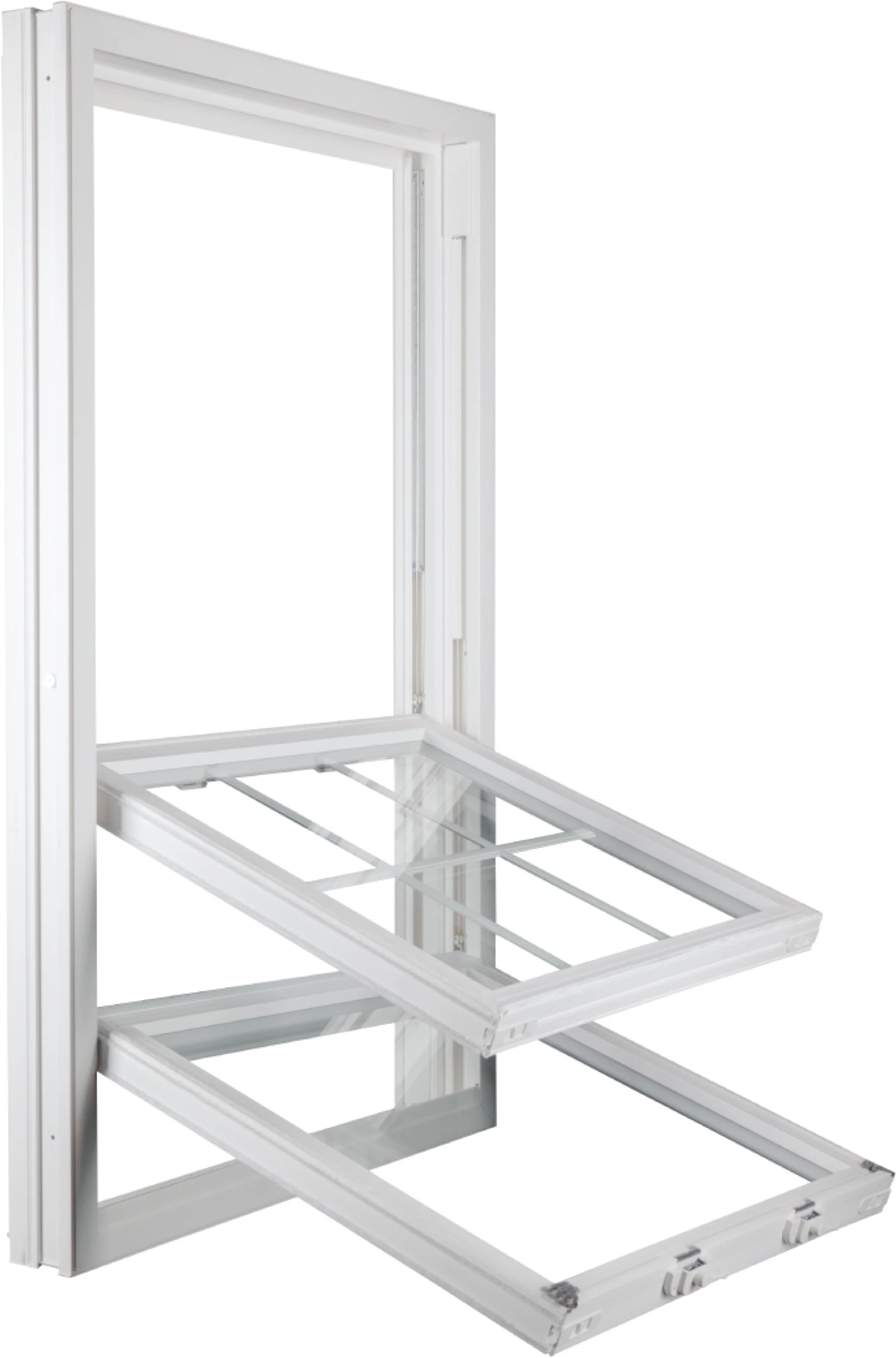

  • Top and bottom sashes with continuous interlock for a tighter fit

  • High performance fin and bulb seal weather stripping

  • Double locks are standard on manufactured window widths over 27-5/8"

  • Night latches

New Construction Features:

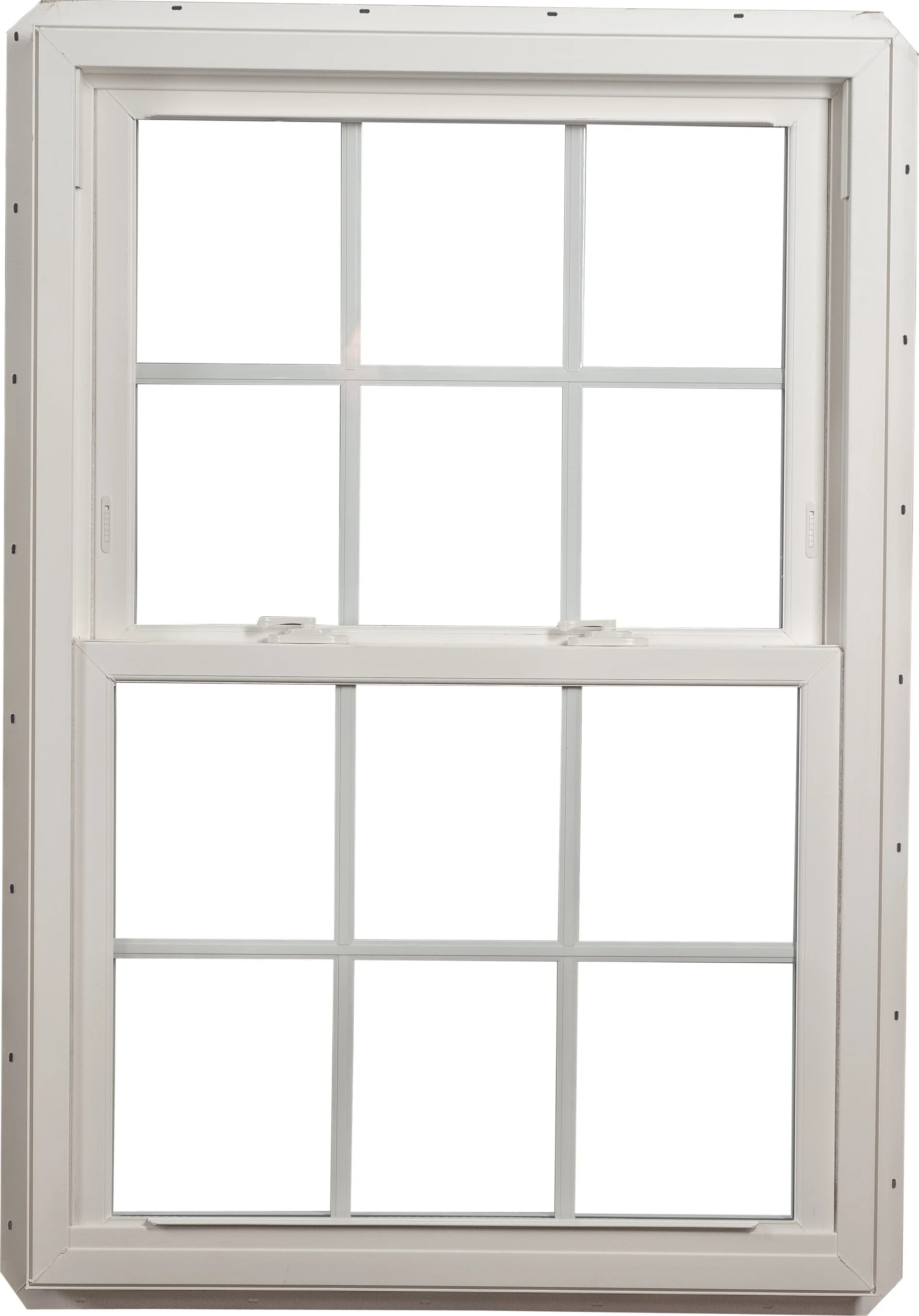

  • Integral nailing fin

  • Optional 3/4" recessed j-channel

  • Optional 3-1/4" flat casing with or without sill (includes nail fin and j-channel)

  • Optional 2" brickmould with or without sill (includes nail fin and j-channel)

  • Optional PFJ or clear pine extension jambs, PFJ extension jambs feature an upgraded primed finish

  • (Standard 4-9/16 and 6-9/16, custom jamb dimensions available)

Additional Options:

  • Grids between glass

  • Simulated divided lites (SDL) - (1” maximum IG)

  • 1-1/4" triple glazed double Low-E and Argon

  • Aluminum screen wire

  • Foam wrap on jambs (replacement frame only)

  • WOCD (window operating control device)

  • Structural mullion

  • Full screen

  • Standard exterior laminate colors: Black and Bronze

  • Standard paint colors: Black, Bronze, Brown, Green, Red, and Beige

*For custom paint colors a color sample must be supplied

Sizes:

  • Widths: 16" through 46"

  • Heights: 24" through 90"

Mercury Excelum, Inc., is proud to offer our customers ENERGY STAR qualified products.
